PFC Phenolic Cloth & Polyester Cloth

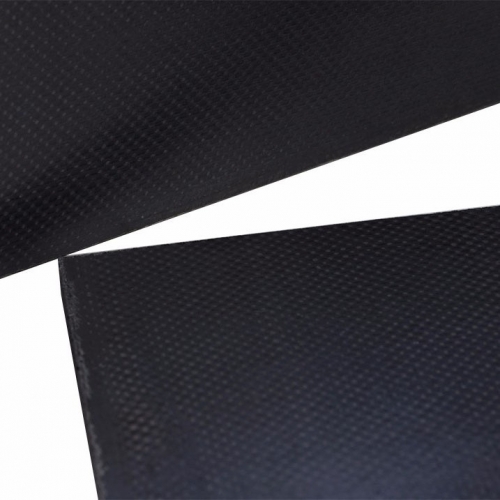

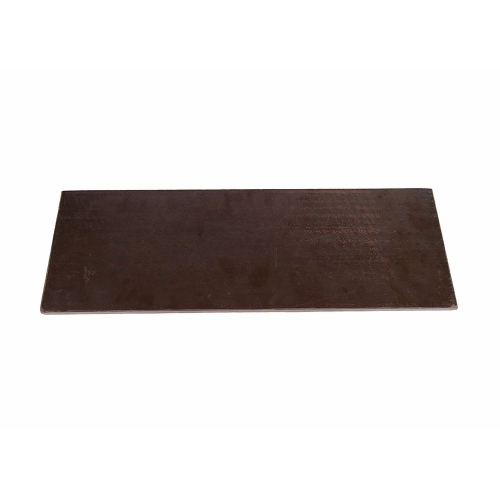

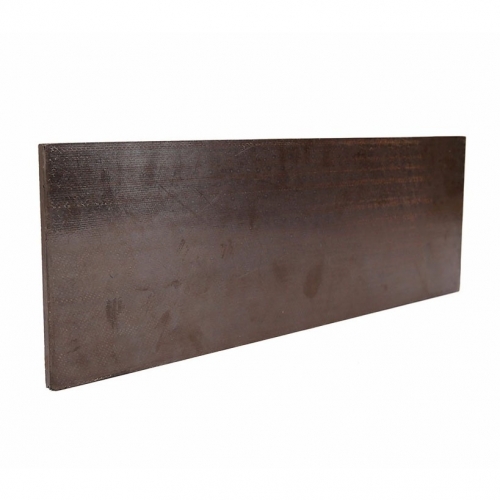

PFC-4 Self-Lubricating Composite Material

Application

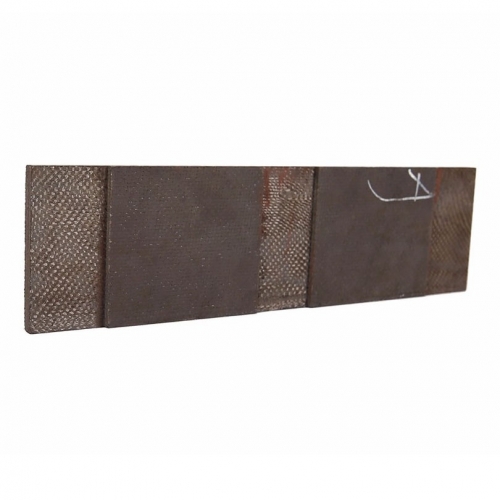

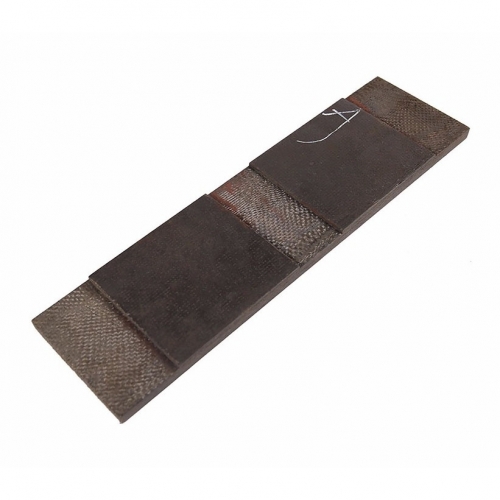

01 Delivery board of steel pusher in steel industry

02 Friction materials for machines working under high temperature

03 The bushings, the friction components and transmission parts for various machineries

Design Introduction

The material uses carbon fiber fabric impregnated with phenolic resin containing a solid lubricant, and is a high-performance material formed by advanced technology at a specific temperature and pressure.

Advantages

It has high temperature resistance, excellent self-lubricating properties, high compressive strength, hardness and other mechanical and physical properties. After compounding with steel plates, it can be used as a conveyor plate for steel pushers in the smelting industry. After winding and forming, it is used for joint bushings of various types of machinery and mechanical friction and transmission parts with higher operating temperatures.

Specification

Part Number

Color

Density

g/cm2

Ultimate Compressive strength

MPa

Rockwell Hardness

HRM

Coefficlent of Friction

Temperature

Dry

Oil

PFC-4

Black

1.4-1.54501080.12-0.300.08-0.13-40~+130
